Fully stand alone
  Operate as Flash drives
  Work on most Operating Systems
  Work on Tablets, Apple, Android,
  Four  models: Temperature °C °F,
  Voltage: DC from 0-1V to 0-100V
  Switch Monitoring (Open or Close)
  Transit Logger password protected
  Low power battery operating
  Relay output

XT102A    Temperature
XV103A1  Voltage
XV102A Two Input Voltage
Xa103A1 4/20mA

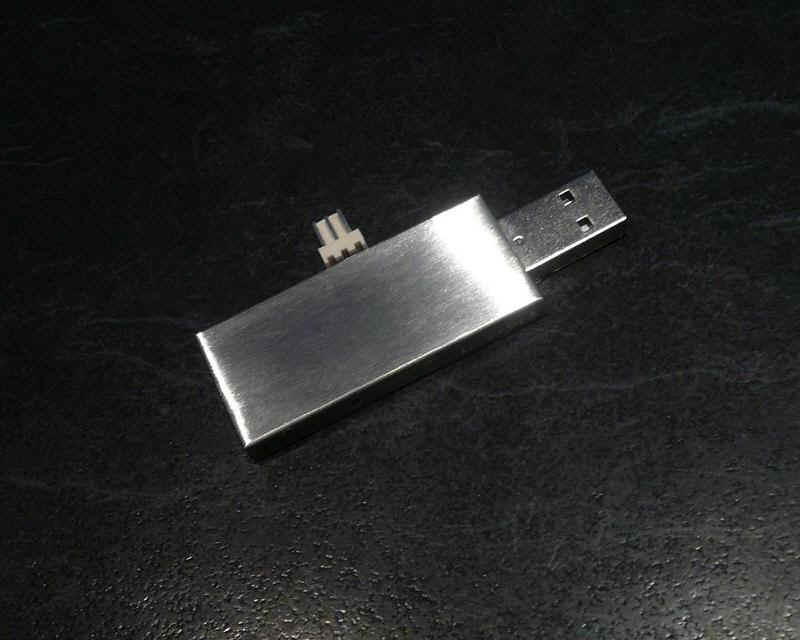

X100 is a family of inexpensive flash drive data loggers which have been designed in order to operate under any computer or smart device capable of reading and writing generic external USB drives. Featuring two point calibration capability these data loggers can achieve maximum precision despite their low cost.
Easy to use and program. Scan Rate programming is done by editing a text file residing in the drive.

Download PDF:
XT102A Apple Mac Compatible Temperature Data Logger (datalogger) User Manual and Specifications

Download PDF:
(Superseded) XT102 Temperature Data Logger User Manual and Specifications

Download PDF:
(Superseded) XT100 Temperature Data Logger User Manual and Specifications

Download PDF:
XV102A Two Channel Voltage Data Logger User Manual and Specifications

Download PDF:
(Superseded) XV102 Voltage Data Logger User Manual and Specifications

Download PDF:
XV103A1 Voltage Switch Data Logger User Manual and Specifications

Download PDF:
(Superseded) XV103A Voltage Switch Data Logger User Manual and Specifications

Download PDF:
Xa103 Current Data Logger User Manual and Specifications

Download PDF:
XV100 Voltage Data Logger User Manual and Specifications

Click here to Buy Xa103A1 4-20mA

XV100

XV103

• Acquisition of temperature or or output  from 0-10V 4-20mA sensors
• Monitoring of DC Voltages or AC (with specific adapter cable).
• Transit data logger: data is password protected from erasing.
• Acquisition situations requiring a simple and inexpensive device for recording data.


• Operating temperature: -40°C + 85°C
• Protection index: IP40.
• Inputs : 6 models available: temperature, voltage, potentiometer, 4-20mA.
• Two point calibration and selection of measurement units: °C, °F
• Programmable scan rate from one second to one week.
• Programmable starting time.
• Password protected.
• Relay output: 3V to switch external equipment on at sampling time (not available on temperature model).
• Power supply: 3V lithium button battery.


• XT102 - Temperature Logger
• XT104 - Submersible Temperature Logger
• XV103A - Voltage Logger
• XV102A - Voltage Logger
• XP100 - Potentiometer Logger
• Xa100 - 4-20mA Logger
