Programmable inputs:
4-20mA / 0 -10V / -10+10V
millivolts / PT100 / thermocouples
digital counters.

  Fully stand alone Sefprogramming. No PC required

  Stainless steel / aluminium body
  Waterproof IP 67
  Low power battery operating
  Memory card: 5 million samples

  Relay output
  Trigger

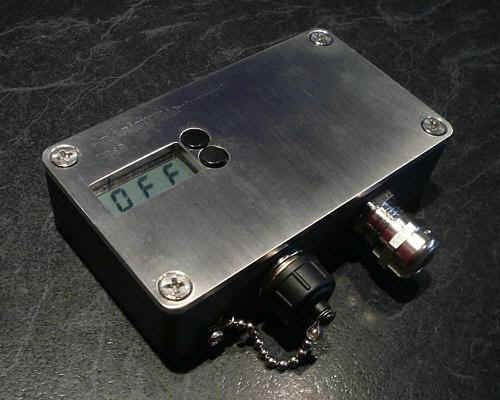

• The datalogger F848 has been designed in order to be connected to standard and non-standard industrial sensors like 4-20mA, PT100 RDTs , Themocouples, millivolt output, 0-10V, 0-1V, 0-2V, 0-5V, and -10+10V.
• Acquisition at any sample rate from hours to 1000 samples per second.
• Acquisition where a combination of large memory and low power is required.
• Acquisition situations requiring flexibility and control of external devices or sensors by the datalogger.
• The datalogger can be employed outdoor and indoor.

• USB / RS232 cables for PC connection.
•

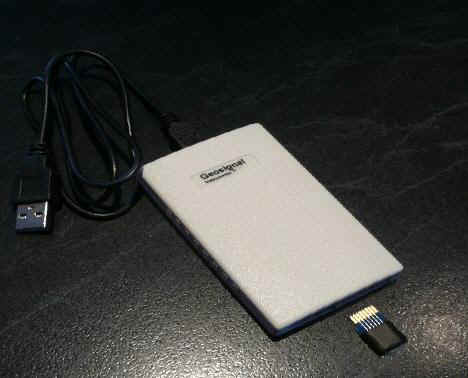

  Card Reader compatibile with most USB devices and OS
• Memory Card with capacity of 5 million samples

• Operating temperature: -40°C + 85°C
• Protection index: IP67
• Inputs : 4 user selectable 4-20ma, TC, RDT millivolt to 0-2; plus another 4 user selectable 0-5V, 0-10V, -5+5V -10+10V; plus 2 digital counters with debouncer to prevent false counts.
• Resolution 12bit
• Internal screw connectors with IP68 external gland.
• Trigger input: sampling can be trigged by an external event or signal.
• Relay output: 200 mA to switch external equipment on at sampling time.
• Power Output: 3V supply output for external equipment or sensors.
• Sampling interval: programmable from 1/128 second to 12 days 24 hours 60 minutes at second increment.
• High speed sampling rate up to 1000 samples per second.
• Internal Clock with timezone .
• Power supply: 2 x 1.5V AAA alkaline batteries or 2 x 1.2V NiMH rechargeable.
• Sensors can be powered by the datalogger thorugh the relay output.
• USB cable (sold separately) for PC connection and loading of special custom acquisition programs.
• Memory card: proprietary format that can be read by any PC/Tablet with USB.
