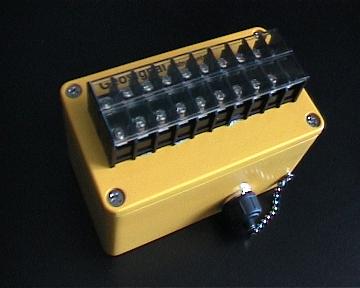

Up to 64 Inputs F880-64

  Total electrical insulation
  Differential inputs
  Large Memory 1 Mbit
  Fully stand alone
  Weatherproof IP65 case
  Run your own software
  Sampling can also be trigged by an external switch or event
  Software for Windows,
  USB / RS232 download

• The datalogger F880 has been designed for monitoring of pipelines or other large structures subject to strong surges.
• Monitoring of sensors placed in deep wells.
• Environmental monitoring plants like landslide monitoring plants.
• Differential monitoring of sensors or sources having large voltage differences from one to the other.
• Acquisition in remote areas.
• Acquisition where a combination of large memory and low power is required.
• Acquisition situations requiring flexibility and control of external devices or sensors by the datalogger.
• Channels do not share a common ground and can even measure 150V one to the other.
• Inputs protected by gas discharger preventing sparks to jump across electrical insulation.

• USB / RS232 cables for PC connection
  Accessories are sold separately

• Operating temperature: -40°C + 85°C
• Protection index: IP65
• Analog channels : 8/16/32/64 with screw connector.
• Analog input ranges: 0-2.56V, 0-5V, 0-10V, ±1.28V, ±2.56V, ±5V, ±10V, ±100V.
• Antialiasing filter: for acquisition of "dirty" signals.
• Digital filter: excludable for fast data acquisition.
• Digital inputs: 1 counter (65535 counts per measure with debouncer to prevent false counts)
• Trigger input: sampling can be trigged by an external event or signal.
• Relay output: 200 mA to switch external equipment on at sampling time.
• Sampling interval: programmable from 1/32 to 16777216 seconds.
• Internal date and time clock in DOS/UNIX format.
• Power supply: 3 ( lithium 3.6V) or 4 (3x1.5V AAA).
• Sensors can be powered on by the datalogger.
